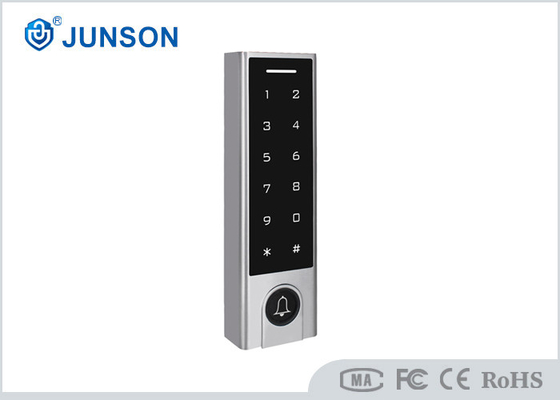

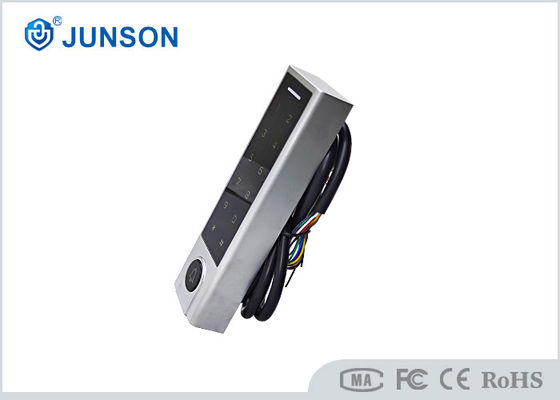

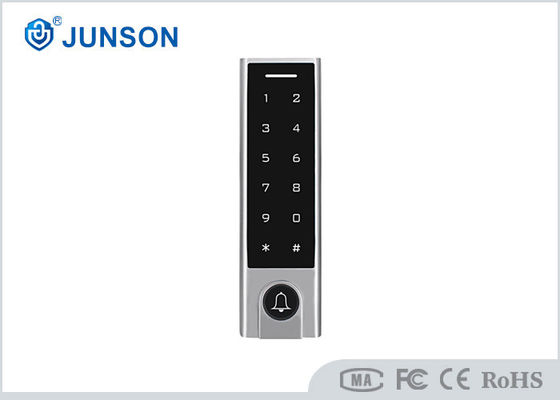

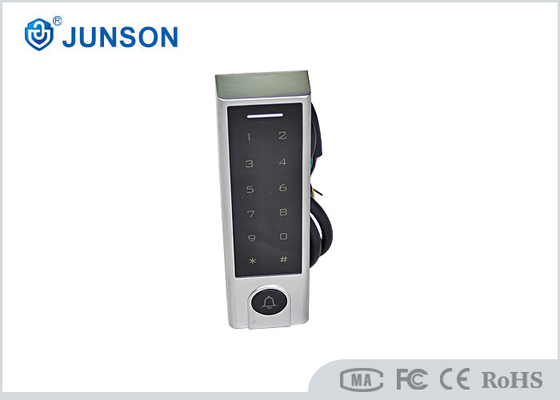

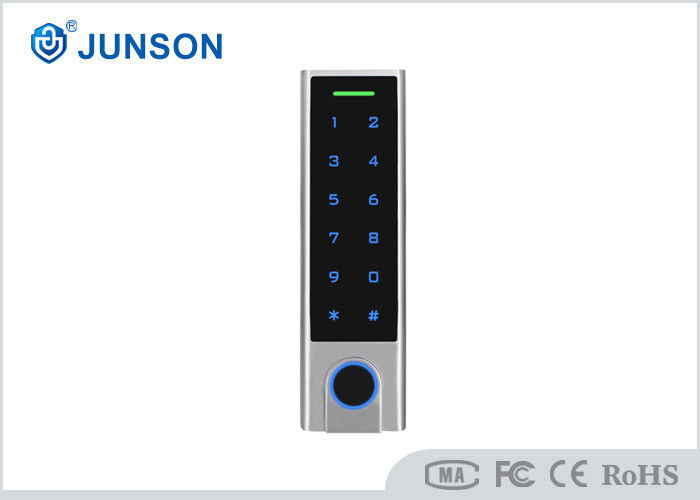

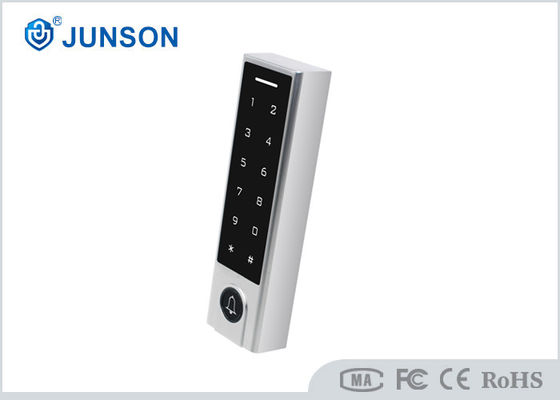

IP66 Zinc Alloy RFID Keypad 99S with Bluetooth and Tuya App for Smart Access Control
Dettagli:
| Luogo di origine: | Cina |
| Marca: | Junson |
| Certificazione: | CE/ROHS/FCC |
| Numero di modello: | JS-T586-BT |
Termini di pagamento e spedizione:
| Quantità di ordine minimo: | 5 pezzi |
|---|---|
| Prezzo: | Negoziabile |
| Imballaggi particolari: | pieno di cartone |
| Tempi di consegna: | 5-7 giorni al ricevimento del pagamento |
| Termini di pagamento: | T/T, Western Union, PayPal |
| Capacità di alimentazione: | 1000/pcs/settimana |
|
Informazioni dettagliate |
|||
| Marca: | Junson | Misurare: | 148 mm * 43,5 mm * 22 mm |
|---|---|---|---|
| Disponibilità mobile: | IOS 7.0, Android 4.3 o superiore | Distanza di frequenza: | 2 - 6 (cm) |
| Ratezione impermeabile: | IP66 | lunghezza del perno: | 4 - 6 cifre |
| Umidità operativa: | 0-98% | Metodo a porta aperta: | Carta, password, carta+password |
| Voltaggio: | 12 V - 18 V CC | Blocca carico di uscita: | 2amp max. |
| Materiali: | Conchiglie in lega di zinco | ||
Descrizione di prodotto
Model: JS-T586-BT
Upgrade your security system with the 99S RFID Access Control Keypad, crafted with a durable zinc alloy body and built to withstand harsh outdoor environments. With an IP66 waterproof rating, this keypad delivers reliable performance in rain, dust, and extreme conditions.
Parameter List
| Dimension | 148mm * 43.5mm * 22mm |
| Weight | 0.45kg |
| Materials | Zinc Alloy Housing |
| Voltage | 12V - 18V DC |
| Current |
Open max current: 150mA Max Static current: 60mA max |
| IP rate |
IP66 |
| Operating Temp | -30℃ - 60℃ |
| Operating Humidity | 0-98% |
| Open door method | Card, password , card+password |
| Door relay time | 1-99S |
| Frequency distance |
6cm |
| Wiegand Interface | Build in Wg26-44 in & out |
| Wiring connections |
Relay output, Exit button, Alarm, Door Contact Wiegand in & out |
| PIN Length | 4 - 6 digits |
| Card type: |
EM or Mifare one card 125KHz / 13.56Mhz |
| Lock output load | 2Amp Max. |
| Colour: | Silver |
| User Capacity |
1000 users Common user: 988 Card / PIN Visitor Users: 10 Panic User: 2 |
Description:
-
Durable zinc alloy access control with IP66 waterproof rating.
-
Anti-vandal, waterproof, and backlit metal keys with a slim, elegant, and sturdy design.
-
Configurable unlock delay, unlock duration, and alarm delay for precise control.
-
Compatible with electric locks, alarms, door sensors, exit buttons, and doorbells for seamless access integration.
-
Supports Wiegand input/output, works with card readers or as a standalone card reader with a control board.
-
Easy programming and user-friendly operation.
-
Supports management card setup for secure access control.
-
Password length: 4–6 digits.
-
Touchscreen design with backlit highlights for enhanced usability and aesthetics.
-
Works with magnetic locks, electric locks, exit buttons, door sensors, bells, sirens, and slave card readers for complete access control solutions.
